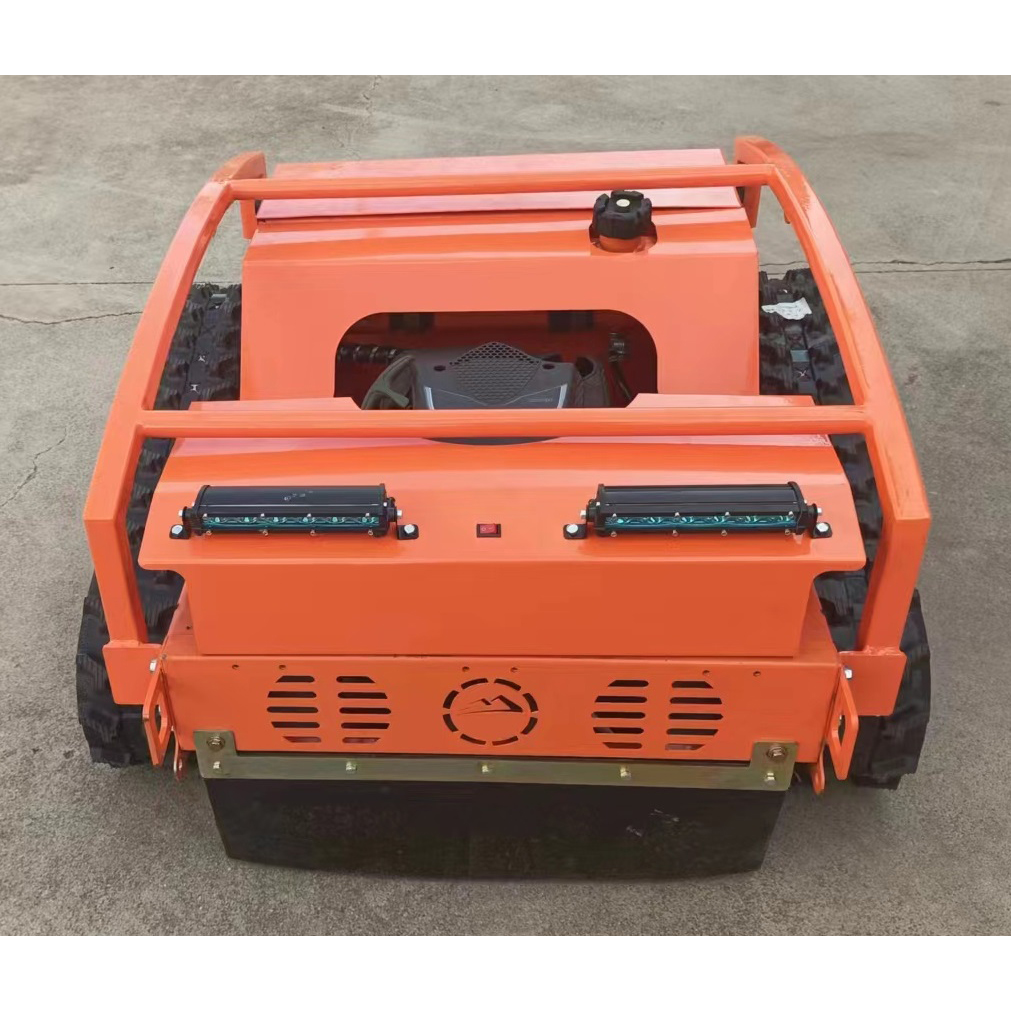

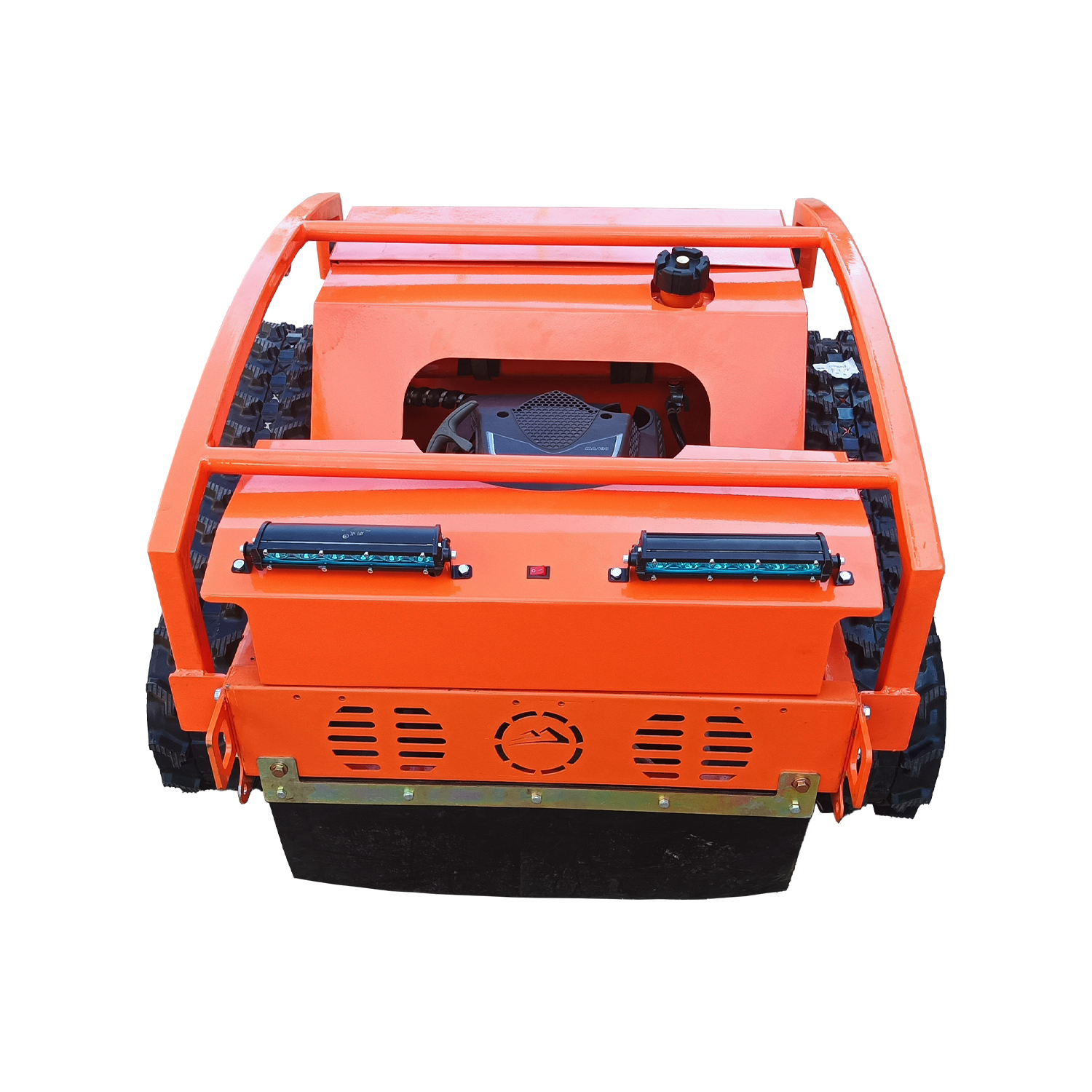

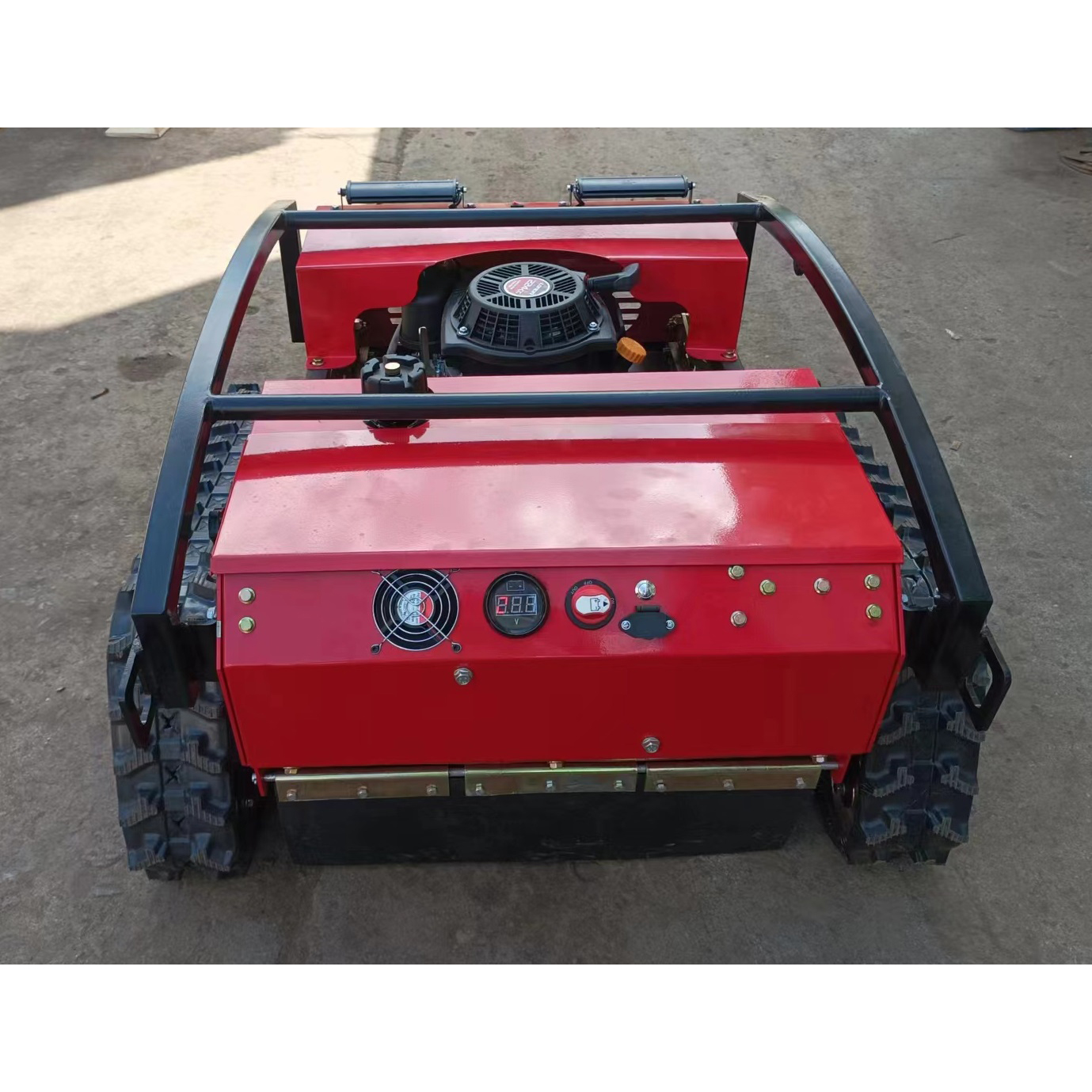

robotic Lawn Mower brushless motor KT50 Petrol

(1), The power adopts Loncin Petrol engine, oil-electric hybrid power, with its own power generation and power supply system, automatic charging in the working process.
(2), The motor adopts Japanese imported DC brushless motor, energy-saving and durable, suitable for long time work.
(3), Automatic brake for stopping, suitable for steep slope operation.
(4), The generator is a marine-grade generator with very low failure rate and long life.
(5), The control chip is imported, industrial remote control device, simple operation, low failure rate, remote control distance greater than or equal to 200 meters.
(6), Crawler adopts internal steel frame steel wire, external engineering rubber design, wear-resistant and durable.
(7), Strengthen the chassis, low body, tank type design, climbing over the ditch is a strong point; especially suitable for: dams, orchards, hills, terraces, photovoltaic power generation, and green mowing.
(8), Adjustment: leave grass height 2 to 15 centimeters adjustable, mowing speed remote control adjustable.


Several remote controls are available for purchase.
A dosing unit, transport pallet, snow shovel, and lifting platform can be purchased separately and mounted on the lawn mower.
Users can purchase the GPS positioning and navigation function, Fully unmanned autonomous driving system.
(1), Support BeiDou and other multi-frequency satellite positioning system, using RTK positioning technology.
(2), Positioning and travelling accuracy can reach ±2cm, high precision operation is guaranteed.
(3), support for autonomous routing, planning, decision-making and walking control algorithms.
(4), millisecond-level multiple sensors, easy to achieve intelligent perception.
Multiple sensors are guaranteed, such as rotational speed sensor, oil level sensor, travelling sensor, temperature sensor, etc.
Support 4G network or digital transmission radio, remote control, automatic start and stop, intelligent and safer.
Ultra-high definition camera, automatic obstacle avoidance.
In the case of multiple mowing robots, free base station can be built to support multi-machine clustering.

Please visit this page to read the manual instructions


Technical parameters of KT50
main unit Model KT50 KT51
Machine Size(LxWxD) 1050x900x450 mm
Weight 160 kg
Crawler width 120 mm
Fuel tank capacity 6 L
Power generation
function
manufacturer Loncin Yamaha
Model LC1P75F-1 MA190
Type Single cylinder,
Four-stroke,
Air cooling
Max.Power 9 Ps
Rated speed 3600 r/min 2800 r/min
Fuel label Petrol
Average oil consumption 1 to 1.5 L/h
Displacement capacity 224 cc 189 cc
Motor Rated power 0.7 kw
Working Voltage 24 V
Rotation speed 2000 r/min
Walking speed 0 to 5 km/h, adjustable
Remote Control Distance ≤200 m
Working slope ≤45 degree
Power generator Rated power 1.5 kw
Batteries type dry storage battery
Remote Battery Voltage 24 V
Walking battery voltage 24 V
Traveling Battery Capacity
Charging type Automatic charging during
generator operation
Lawn mowing knives Number of cutters 2 pieces
Cutter Rotation Speed ≥3000 r/min
Mowing width 550 mm
Grass retention height 30 to 120 mm, adjustable
The standard together with the machine is the remote control N1
Channel Quantity 8 Working Voltage 4.2 to 9V
Frequency 2401to 2478 MHz Frequency Hopping S-FHSS
Weight 550 g Size 180x85x185mm
Power Supply 4x5 batteries or 2S lithium batteries
Receiver
Working Voltage 4.5 to 6V Support MC9002(standard), can also MC8RE, MC7RB, MC6RE, E6R-E, M-BUS

Optional accessories
